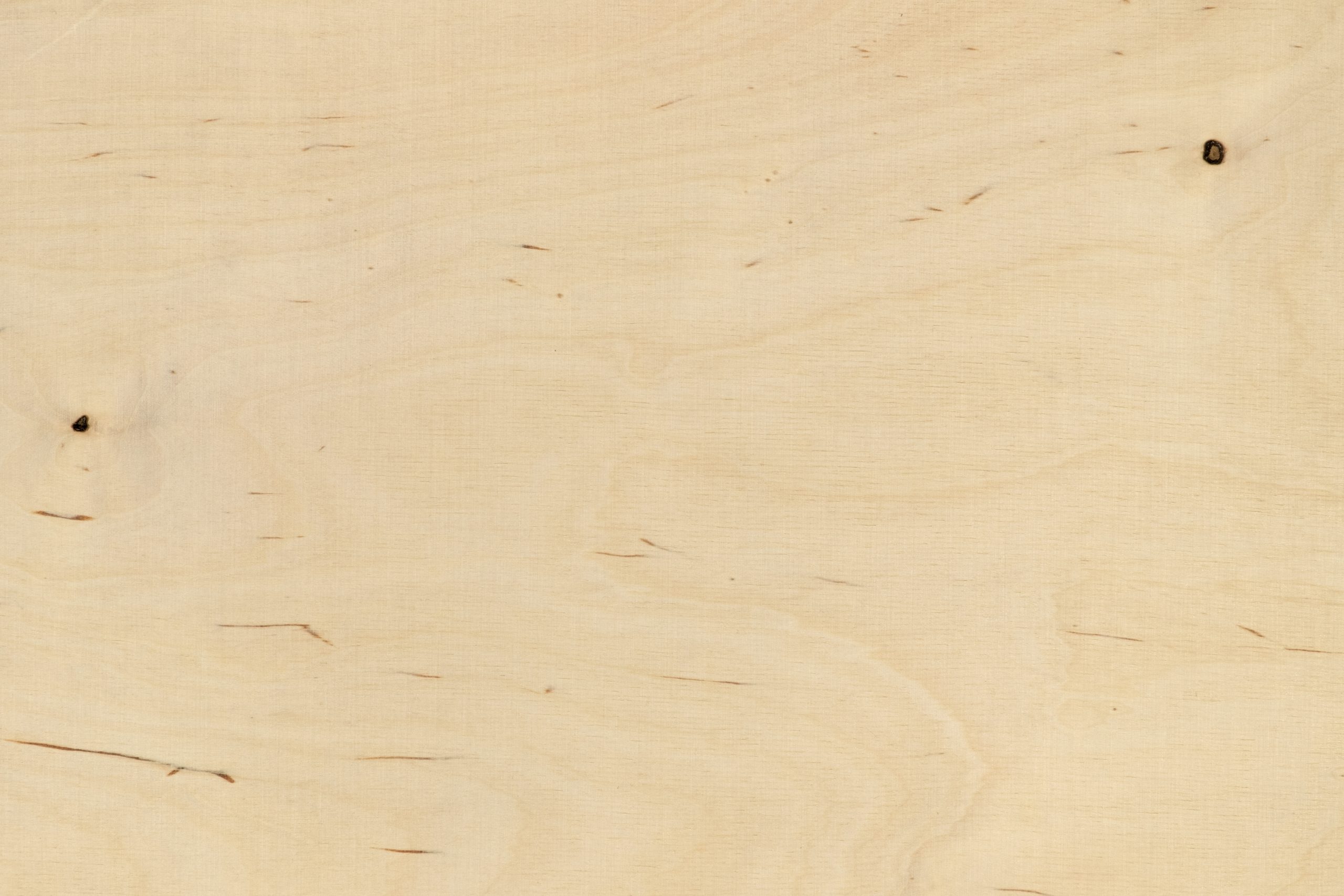

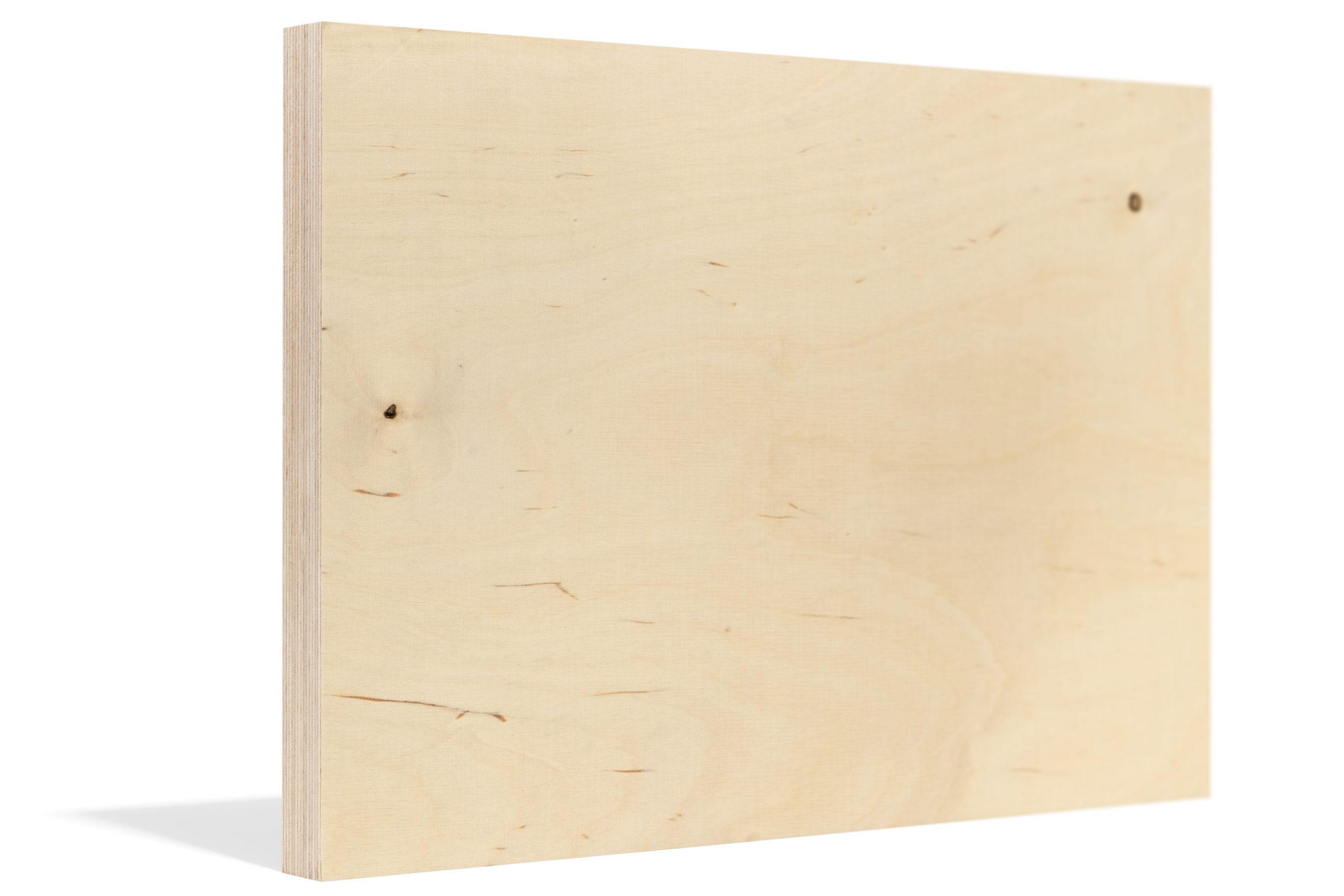

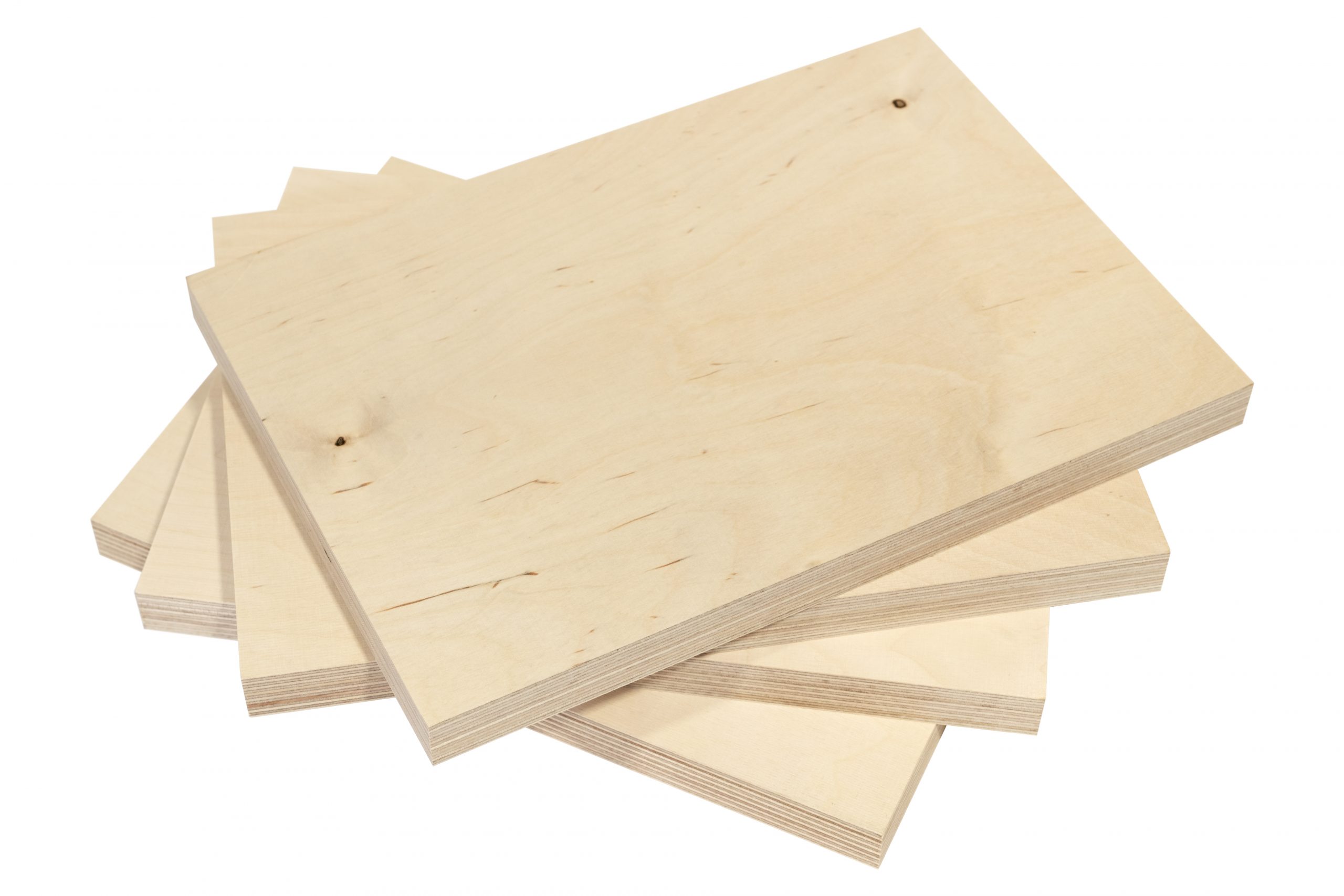

CC Grade(Utility Apperance)

Thickness: 4, 6.5, 9, 12, 15, 18, 21, 24, 27, 30

DEFECTS	DESCRIPTION
Pin knots (sound intergrown knots of no more 3 mm diameter)	Permitted
Sound lights and/or dark knots	Diameter up to 40 mm, cumulative diameter does not exceed 400 mm/m2 Knots may have splits up to 1 mm
Unsound adhering knots	Diameter up to 5 mm up to 3 per m2
Other knots and holes	Diameter up to 15 mm, cumulative diameter does not exceed 100 mm/m2, repaired
Abnormalities due to insects	Width 15 mm and length 60 mm, up 3 per m2
Open splits and checks	Up to an individual width up to 2 mm and of an individual length 600 mm, up to 2 per meter of panel width, repaired
Closed splits and checks	Permitted
Irregularities in the structure of the wood	Permitted
Stains from manufacturing (strips)	Permitted
Curly grain	Permitted
Discoloration and colored streaks	Permitted
Brown (Not rot)	Permitted
Inserts	Up to 15 pcs
Open joints	Up to an individual width up to 2 mm and of an individual length 600 mm, up to 2 per meter of panel width, repaired
Dents and bumps	Up to 0.5 mm in height or depth, up to 120 mm in width
Roughness	Permitted
Sanding through	Up to 10 cm2 per m2
Unsanded areas	Up to 5% of the panel surface
Glue penetration	Up to 10% of the panel surface
Defects at the edges	Up to 5 mm from the edge
Delamination	Not permitted
A part of bark or bast remaining on face veneer area	Not permitted

The manufacturer reserves the right to modify specifications without prior notice.

Natural variations in wood, including color and structure, are inherent and shall not be considered defects.

The information provided in this document is for general guidance only and may vary within normal production tolerances.

Dimensional Tolerances (3).jpg

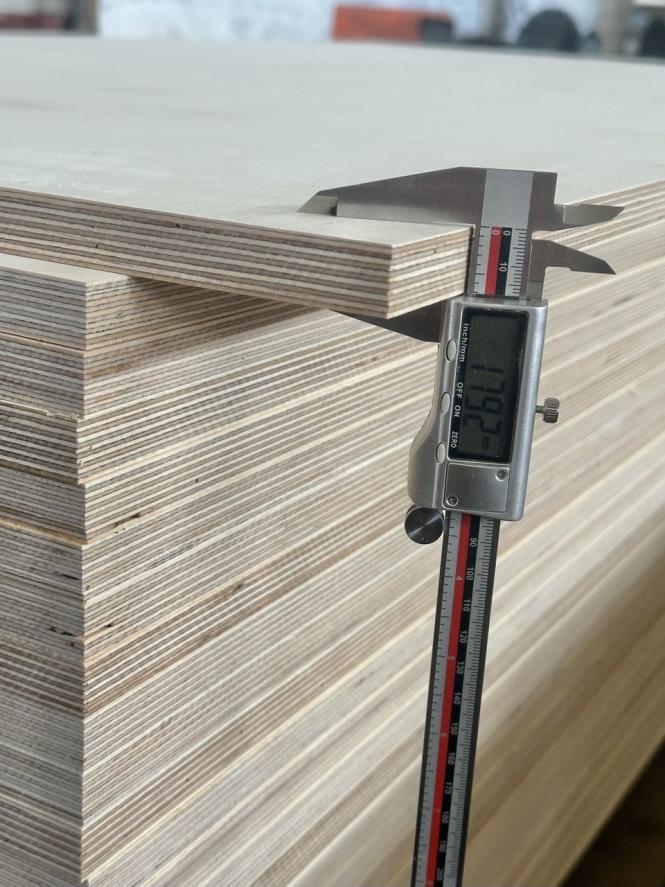

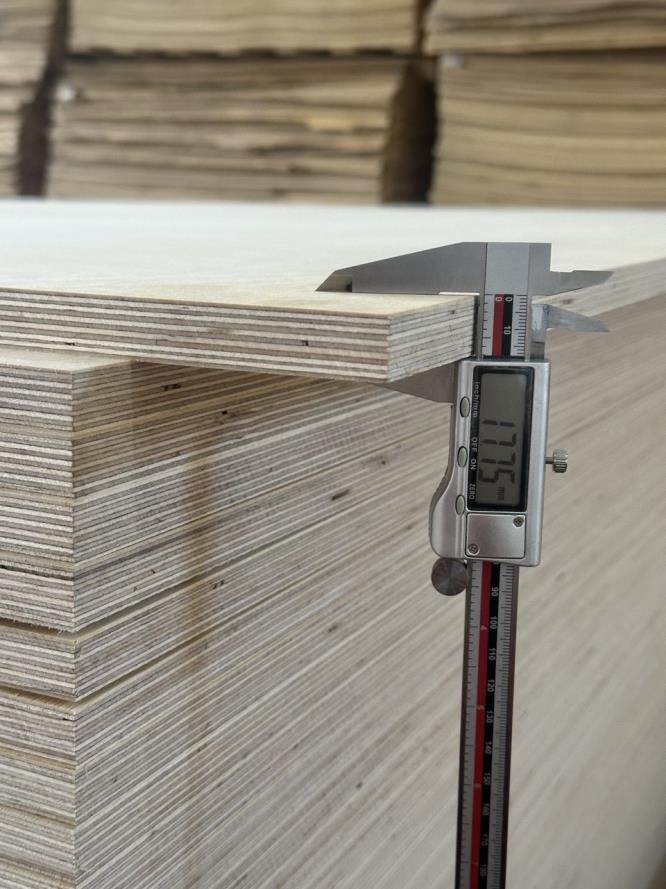

Thickness Tolerance (18mm Raw Birch Plywood) Thickness Tolerance (18mm Raw Birch Plywood)

Dimensional Tolerances (4).jpg Dimensional Tolerances (2).jpg

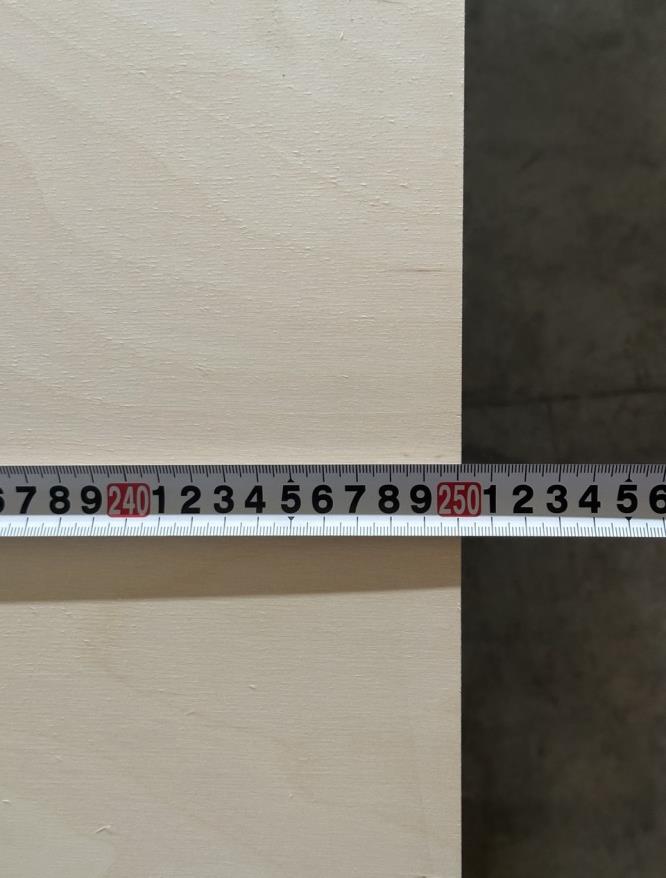

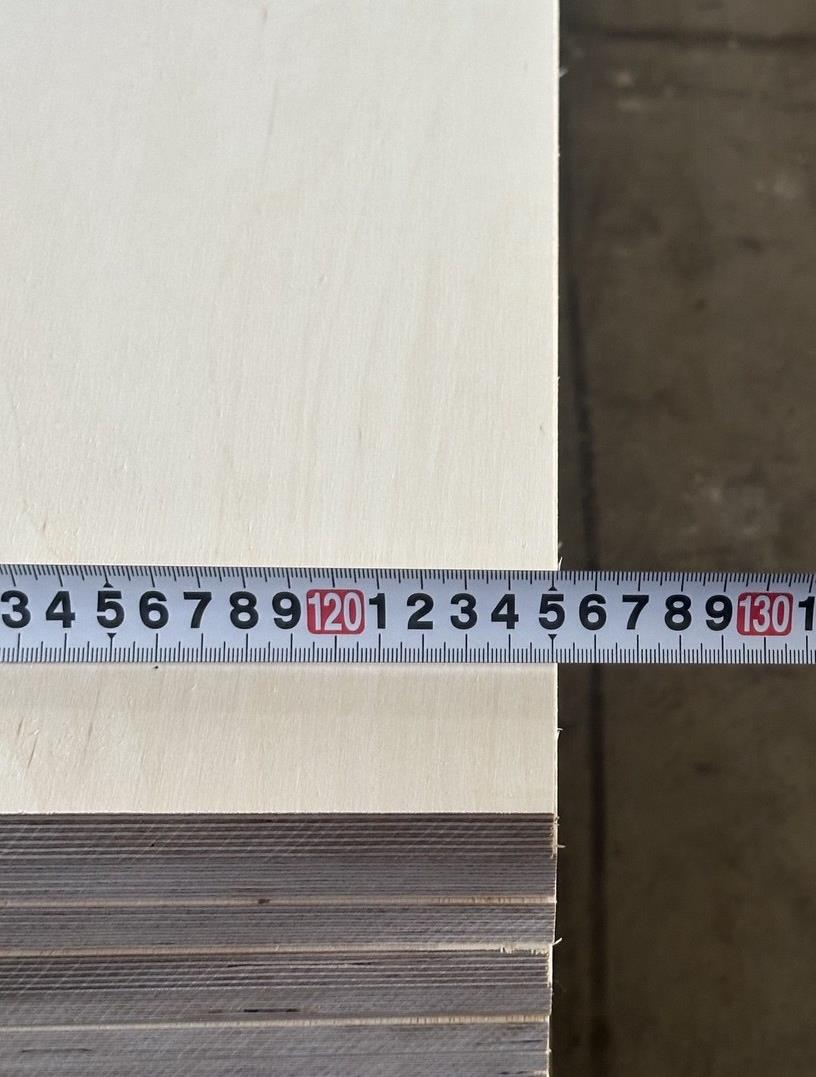

Length Tolerance (2500x12500mm Raw Birch Plywood) Width Tolerance (2500x12500mm Raw Birch Plywood)

Each plywood sheet produced at SIA Topply undergoes strict quality control and is inspected for compliance with the specified tolerances for thickness, length, and width.

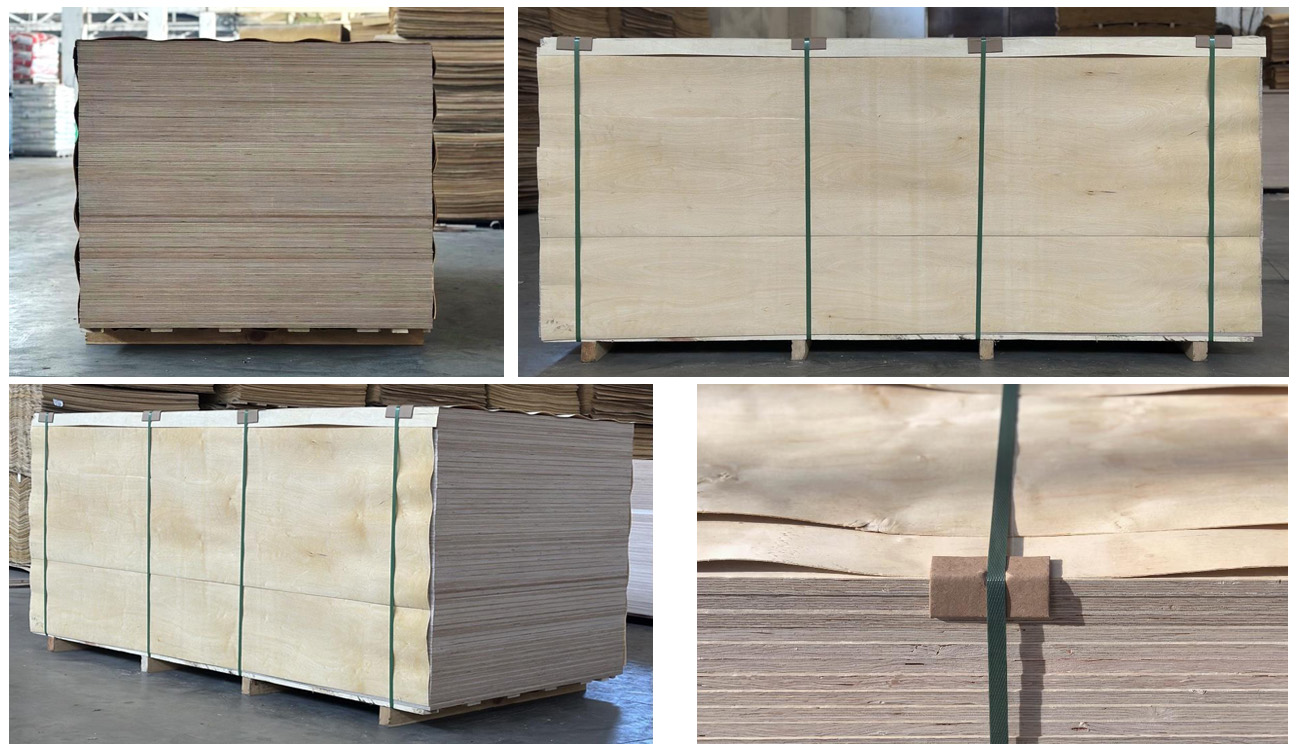

The plywood is supplied with a protective outer covering intended to reduce the risk of damage during transportation and storage. Each pack is placed on stable pallets suitable for repeated handling, and secured with plastic strapping. The corners are protected with edge guards. Packaging configuration may be modified upon customer request, including the protection, customer specific labels and logo

Thickness	Sheets per pack	CBM per pack	Total packs	Total sheets	Total CBM
9 mm	115 pcs	3,234	10	1150 pcs	32,340
12 mm	87 pcs	3,263	10	870 pcs	32,630
15 mm	70 pcs	3,281	10	700 pcs	32,810
18 mm	57 pcs	3,206	10	570 pcs	32,060
21 mm	50 pcs	3,281	10	500 pcs	32,810
24 mm	43 pcs	3,225	10	430 pcs	32,250
27 mm	38 pcs	3,206	10	380 pcs	32,060
30 mm	35 pcs	3,281	10	350 pcs	32,810

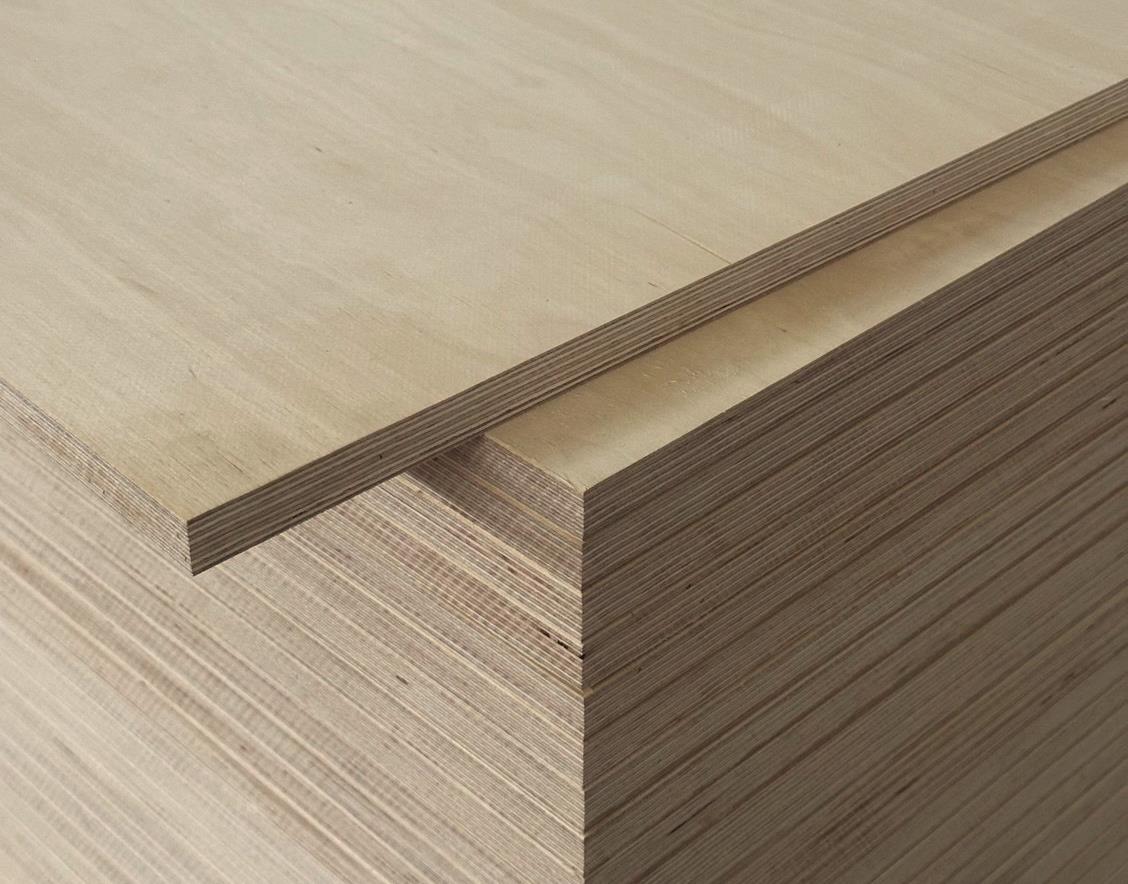

Truck Loading Configuration.jpg

Packing parameters are carefully engineered based on extensive international shipping experience and standard logistics requirements. The number of sheets per pack and volume of each unit are balanced to ensure efficient use of cargo space, load stability during transportation, and compliance with standard weight limitations. Sheet count per pack is adjusted according to thickness, which helps prevent overloading and ensures safe and convenient handling during loading, unloading, and multiple relocations.
